THE BENEFITS OF A COMPREHENSIVE PACKAGE
- Guarantees compatibility between all your equipment,
- Counters and a fish pump adapted to the size and speed of the grader,
- Including connecting elements,
- Power is centralised on a single control box,
- The package is supplied with all connection elements to operate at start-up.
All packages are given as an example and can be modified according to the customer's needs.
Trout / Salmon
from 40g to 2500g
Tilapia
from 30g to 1500g
Sea bream
from 30g to 1500g
Sea bass
from 40g to 1500g
| Pack description | Reference |
|---|---|
| 1 Trieur à poissons Hélios 50 | TH5036 |
| 3 Compteur à poissons Pescavision 50 | PESCA50 |
| 1 Pompe à dépression Pescavac 50 (8") | PV0801 |
| Options and accessories of the pack | |
| 3 Reception tanks Ø 250 mm | CBRC250 |
| 1 Submersible water pump 50 m3/h | TPOW50I6T5 |
| 1 Control box | THC0024 |
| 1 5 m suction flexible pipes Ø 200 mm (8 inch) | PP0803C |
| 1 5 m discharge flexible pipes Ø 200 mm (8 inch) | PP0803C |
| 1 Télécommande pompe à poissons | PH00REM2 |
Pack 50 Series – Harvesting pack
MEDIAS
Pack 50 Series – Harvesting pack
DOWNLOADABLE DOCUMENTATION
PACKS
TECHNICAL DATASHEET
SERIE 50 Pack standard
- EN
- DE
- FR
- ES
Click on the language of your choice to download the brochure in pdf format.
Pack 50 Series – Harvesting pack

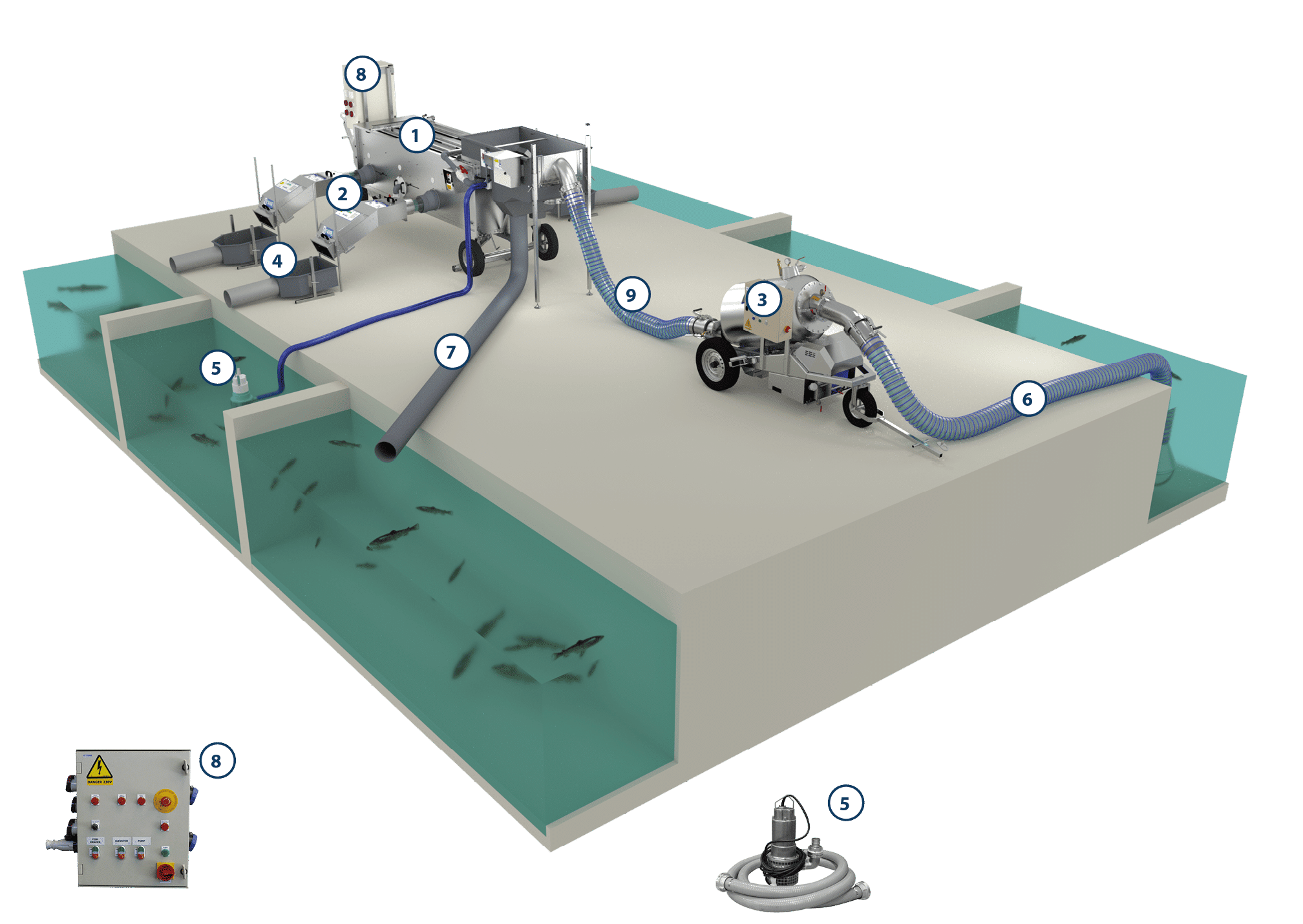

PACK CARACTERISTICS
- Helios 50 fish grader (3 channels)
- 3 units Pescavision 50 fish counters
- Pescavac 50 fish pump (Ø 200mm – 8 inch)
- 3 units reception tanks (Ø 250 mm)
- Submersible water pump 50 m3/h
- 5 m suction flexible pipes (Ø 200 mm – 8 inch)
- 5 m dewatering pipes (Ø 200 mm – 8 inch)
- Centralized control box
- 5 m discharge flexible pipes (Ø 200 mm – 8 inch)
