5g – 150g

5g – 50g

8 channels

Led

LCD

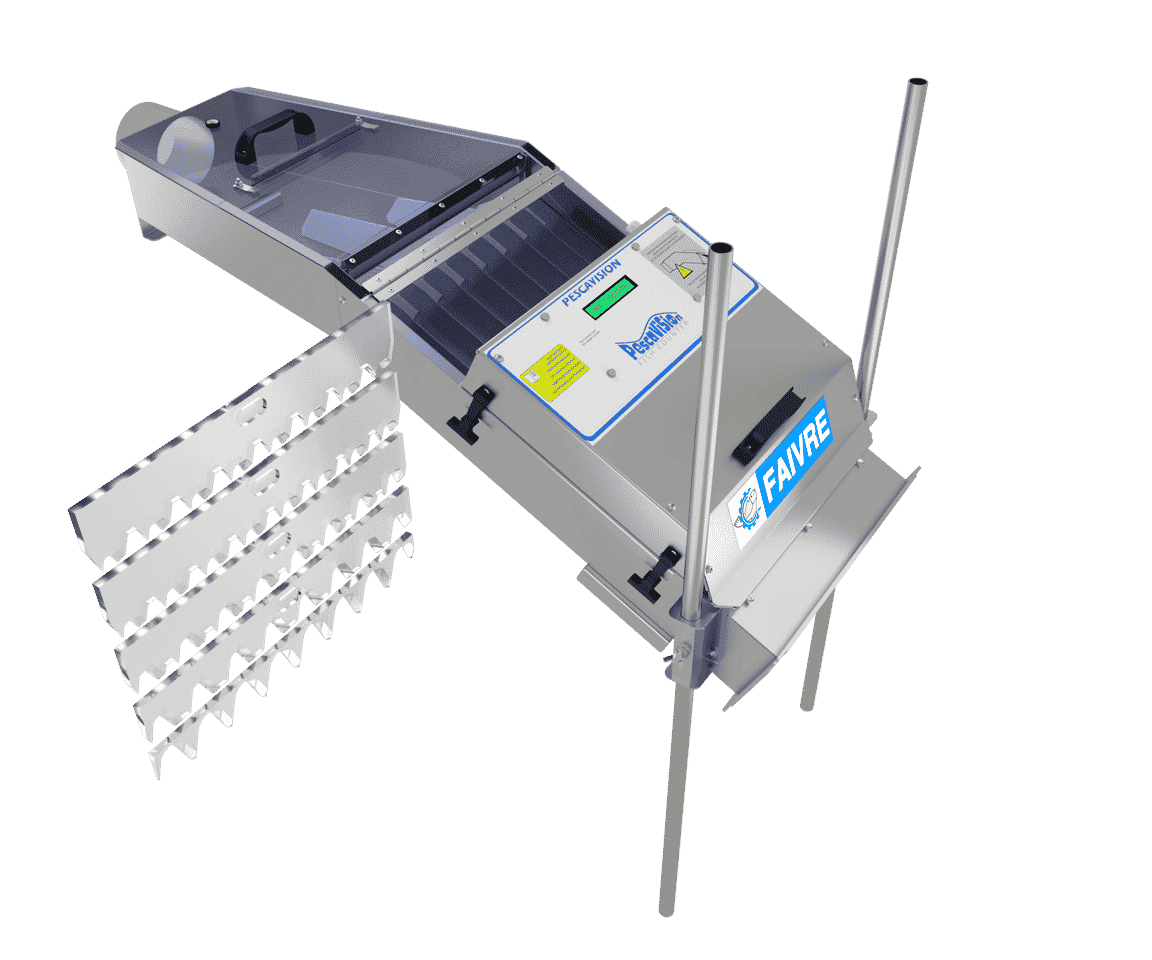

The Pescavision 10 fish counter is designed to count small fish from 5g to 150g maximum (salmonids). It is designed to be placed at the outlet of a grader like the Helios 10.

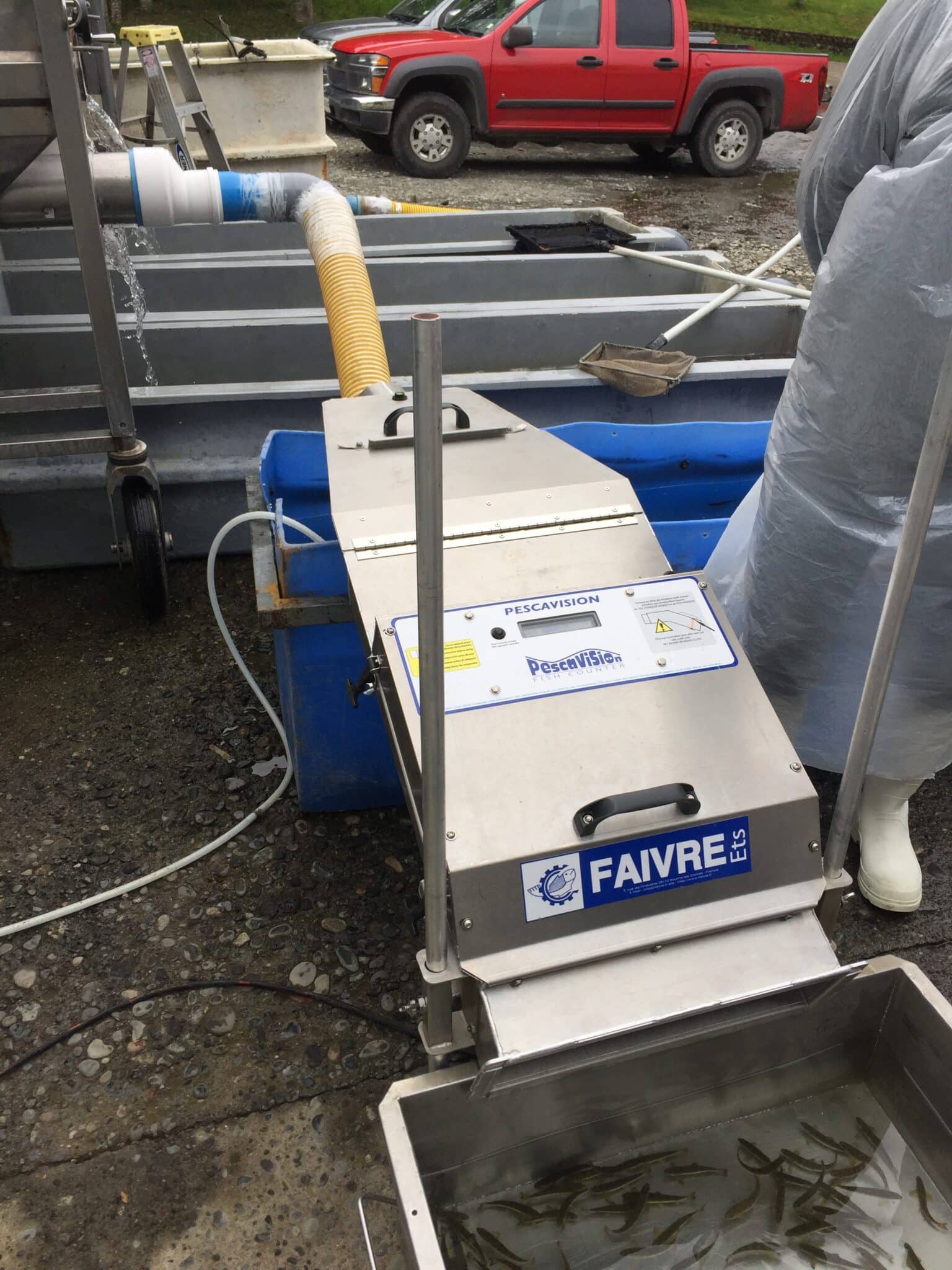

Our Pescavision fish counters are very easy to install, there is no electronic adjustment to do. You just have to install it on the grader’s outlet pipe to adjust its level and plug it to a power socket.


Fish counters – Fish counter Pescavision 10

Product description

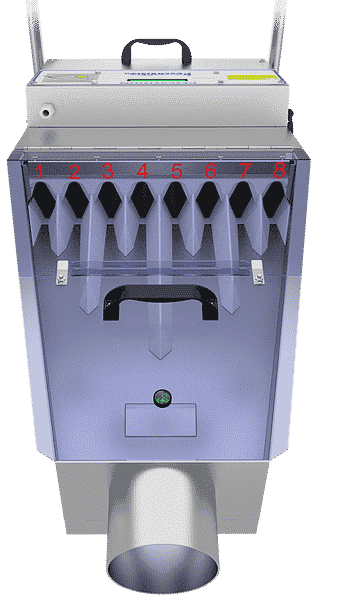

8 channels for a faster counting

Optimised by high performing digital simulation tools, the fish counter’s inlet design has been engineered for an equal distribution into each of the eight channels.

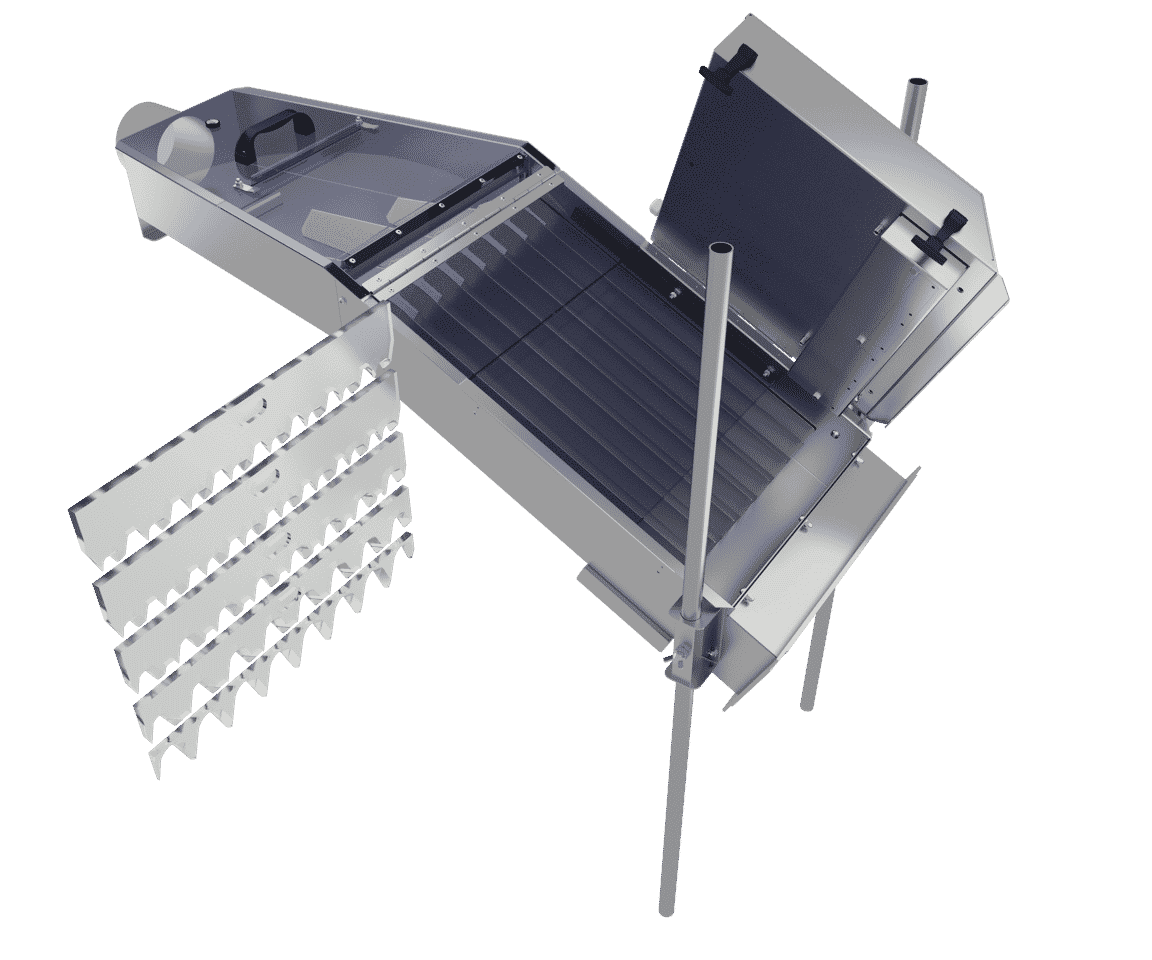

Easy to clean with its mobile cover

Pescavision 10 fish counter opens very easily to facilitate regular cleaning of the transmitters and receivers.


LCD screen

An LCD screen offers a real time display of the counted fish.
Thanks to the backlighting of the screen, the numbers are perfectly readable in all situations.


Infrared technology

Infrared emitters, placed on the top of the counting channel, illuminate the receivers located under the channel’s bottom. A fish that cuts the beam is immediately scored.
This technology, coupled with our fish separation system, provides an accurate and efficient count of live fish.


Fish counters – Fish counter Pescavision 10

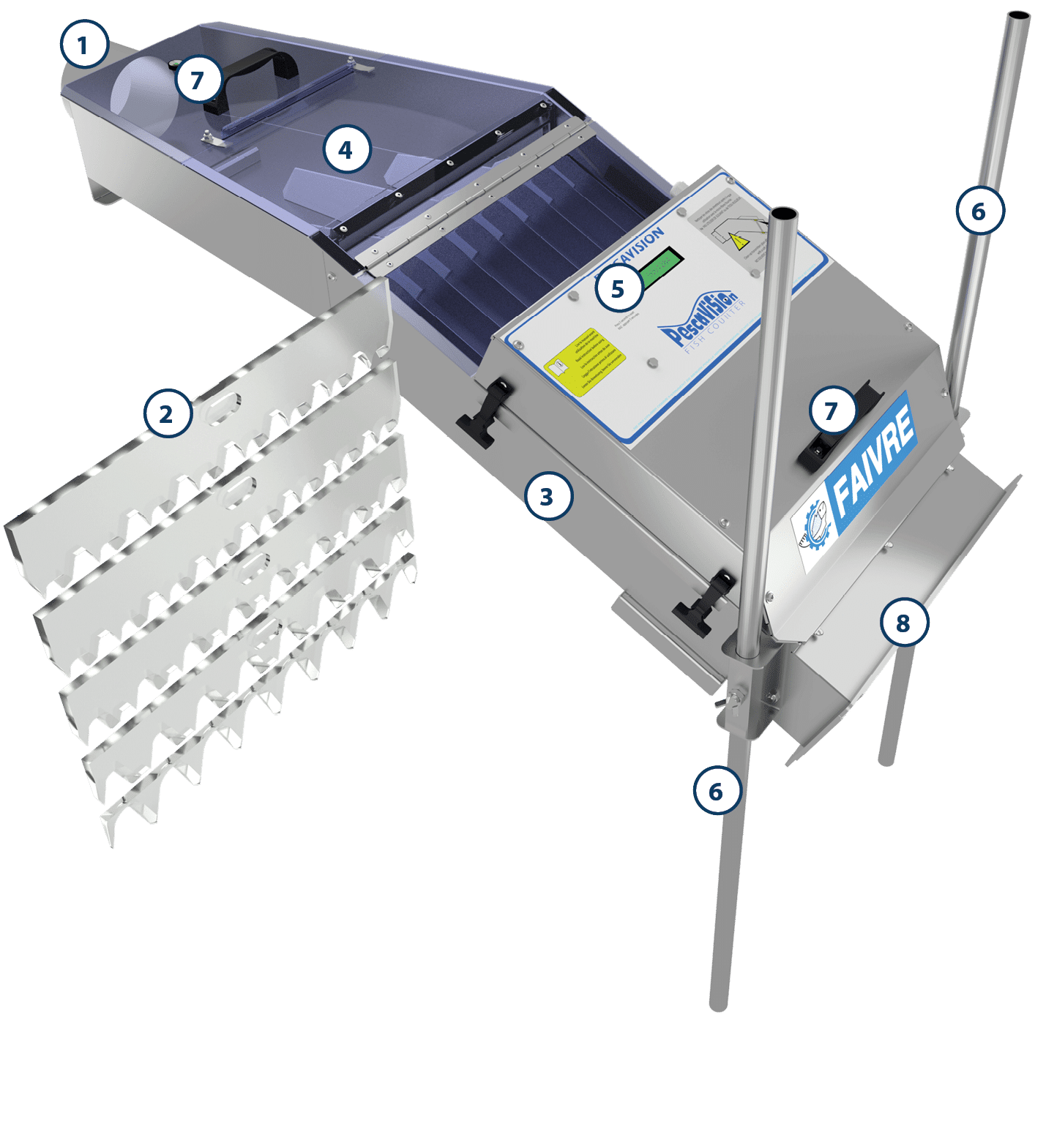

PRODUCT CHARACTERISTICS

  • Fish counter inlet (female Ø 125 mm)
  • Fish dividers (x5 different sizes dividers)
  • Fish counter box in marine grade aluminium
  • Channels access (with cover)
  • LCD display
  • Aluminium movable feet
  • Handles
  • Fish counter outlet

Fish counters – Fish counter Pescavision 10

PRODUCT OPTIONS



Touchscreen central control unit


A central control unit gathering the information of the 3 counters has been integrated on the side of the Heliovision grader.
A counting report in Pdf format can be exported on an USB key and transferred to your computer.
The touch screen will provide the following information:

– Number of fish counted for each counter
– Total number of counted fish
– Last counting record.
– Counting time.

Ref. :
– PESCA4CO tension d’alimentation 1×110-240V 50/60Hz






Counting station trolley


A stainless steel trolley on wheels has been developed to gather the counters on a single structure (max. 4 counters), thus facilitating the installation and the removal of the counters in the farm.
The centralization box and the reception trays can be fixed on the trolley to make a complete and autonomous counting station.
A single electrical cable will then be enough to power the station as well as the counters on it.






Reception tanks


The reception tanks are designed to place the counter at the grader’s outlet.
It has 2 adjustable height feet, in order to give a slope to your outlet pipe on flat ground.
Practical, it permits to centralize the counters around the grader.

Ref:
– CBRC200 with Ø200mm outlet (suitable for Pescavision 10 and 30 counters)






PVC connecting parts


Each counter has to be connected to the grader with a flexible or rigid PVC hose. Therefore, we have a complete range of specific sleeves to connect the counters to each of our graders.

Ref:
– TH000522V PVC connection to the outlet of a Helios 10 grader.
