100g – 1,5kg

100g – 600g

3 channels

Led

LCD

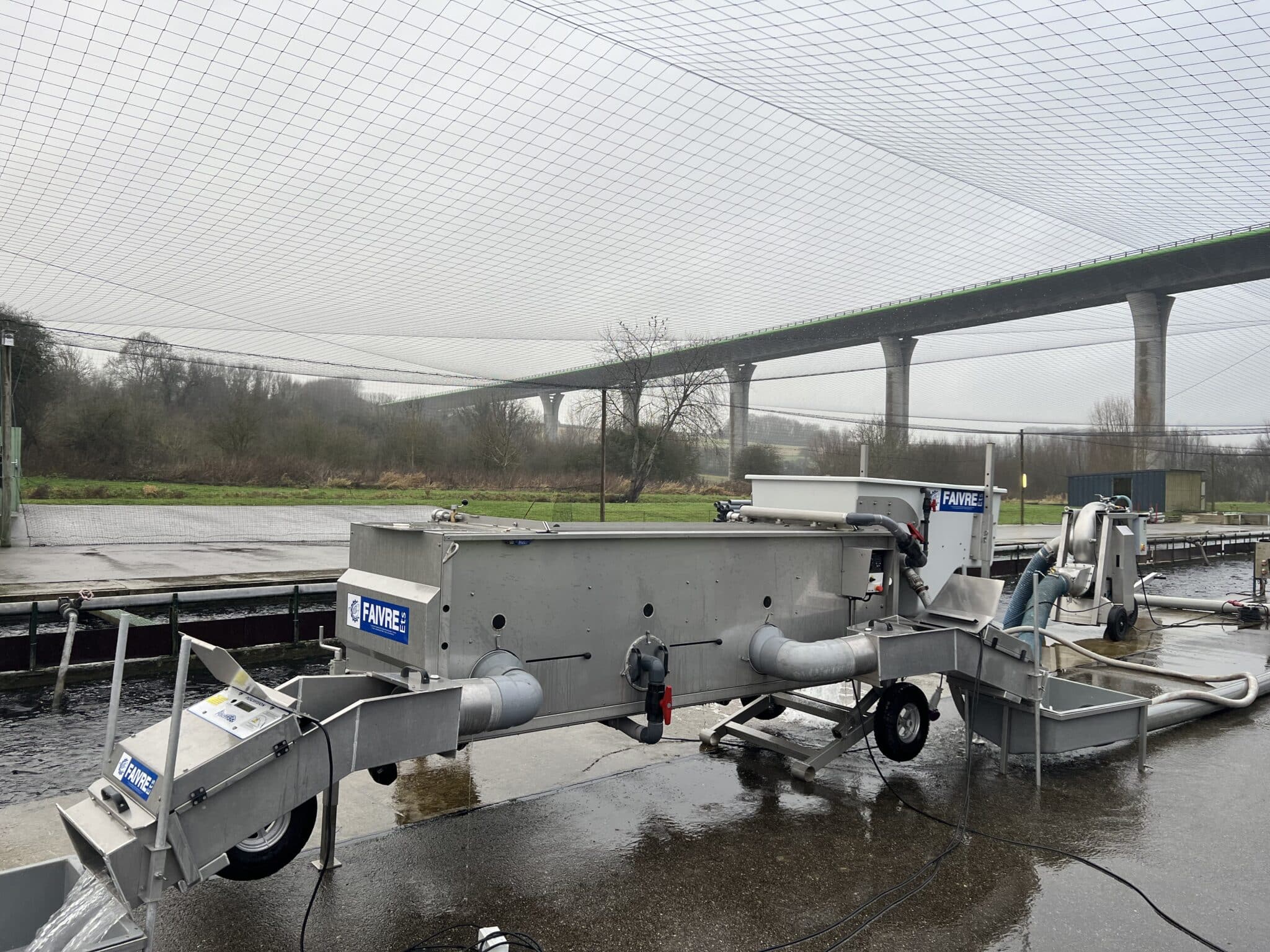

The Pescavision 40 fish counter is designed to count small fish from 100g to 1,5 kg maximum (salmondis). It is designed to be placed at the outlet of a fish grader like the Helios 40.
Our Pescavision fish counters are very easy to install, there is no electronic adjustment to do. You just have to install it on the fish grader’s outlet pipe to adjust its level and plug it to a power socket.


Fish counters – Fish counter Pescavision 40

Product description

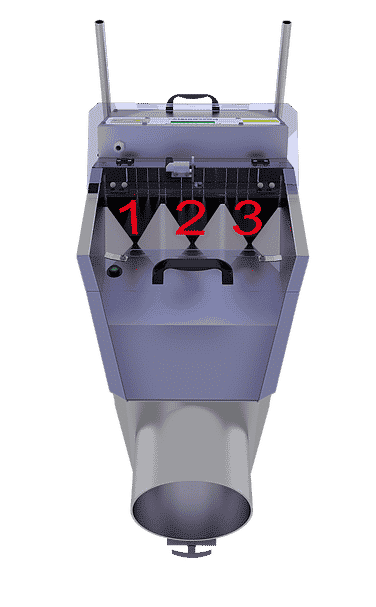

3 channels for a faster counting

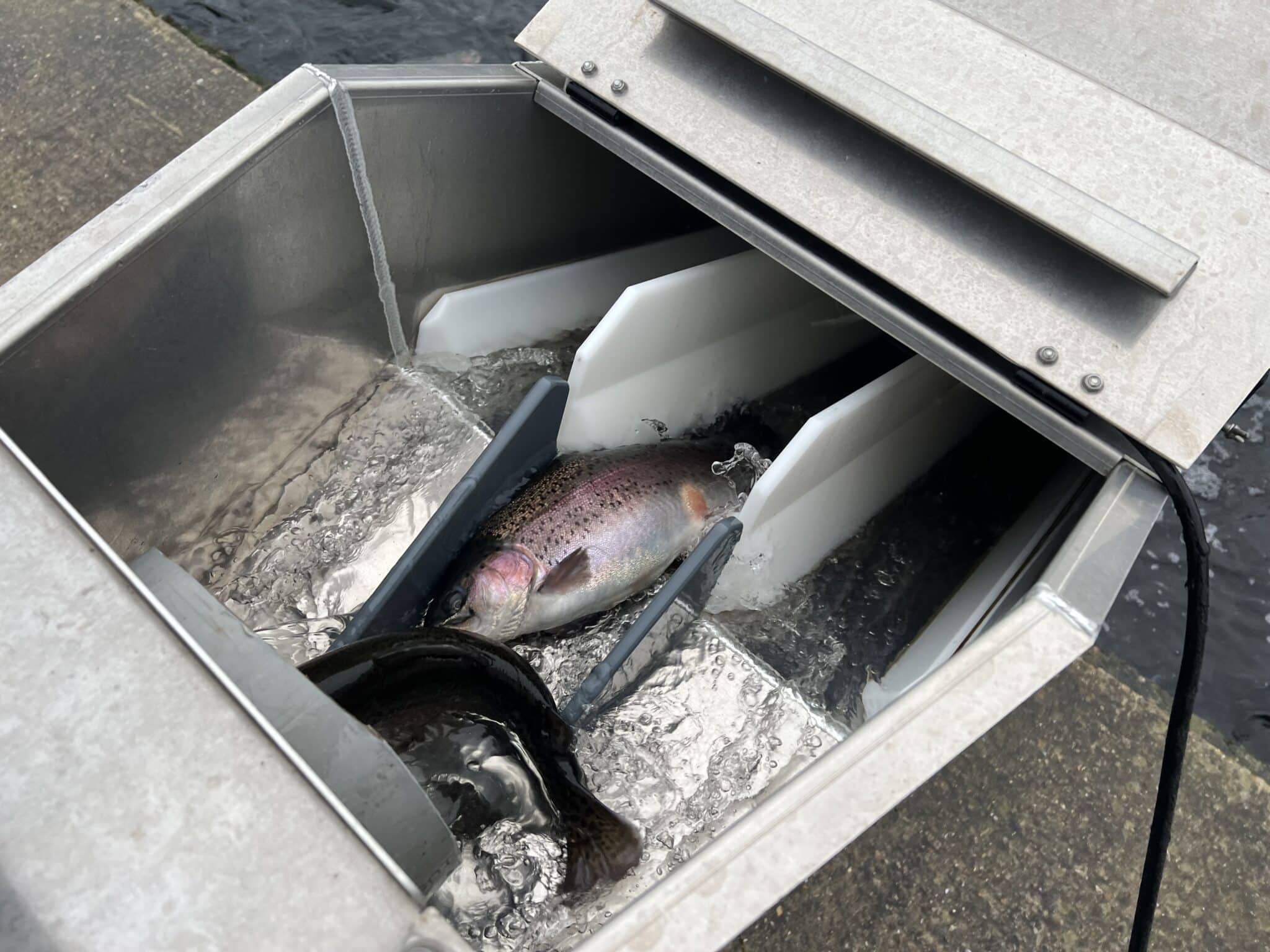

The design of the fish counter’s inlet has been engineered for an equal distribution in each of the 3 channels. This new fish counter model has a V shaped channel, which provides a better fish separation in the counting channels.

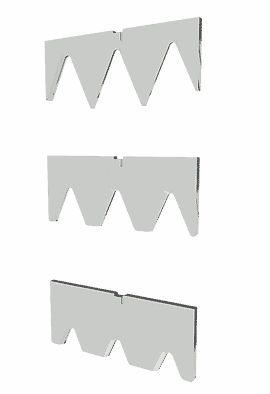

3 adjustable separators

This new fish counter with its V-shaped inlets and channels offers us a newly designed and height-adjustable separator.
A wide range of weights from 100g to 1.5 kg maximum (salmonids) can be covered by only 3 separators.
The separators’ height adjustment enables a better separation of the fish in order to keep a counting accuracy of 98% to 100%.

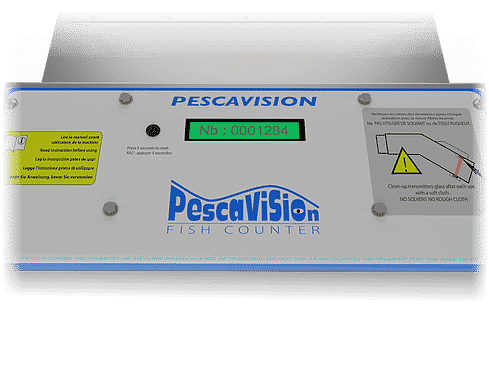

LCD screen

An LCD screen offers a real time display of the counted fish.
Thanks to the backlighting of the screen, the numbers are perfectly readable in all situations.


Infrared technology

Infrared emitters, placed on the top of the counting channel, illuminate the receivers located under the channel’s bottom. A fish that cuts the beam is immediately scored.
This technology, coupled with our fish separation system, provides an accurate and efficient count of live fish.


Fish counters – Fish counter Pescavision 40

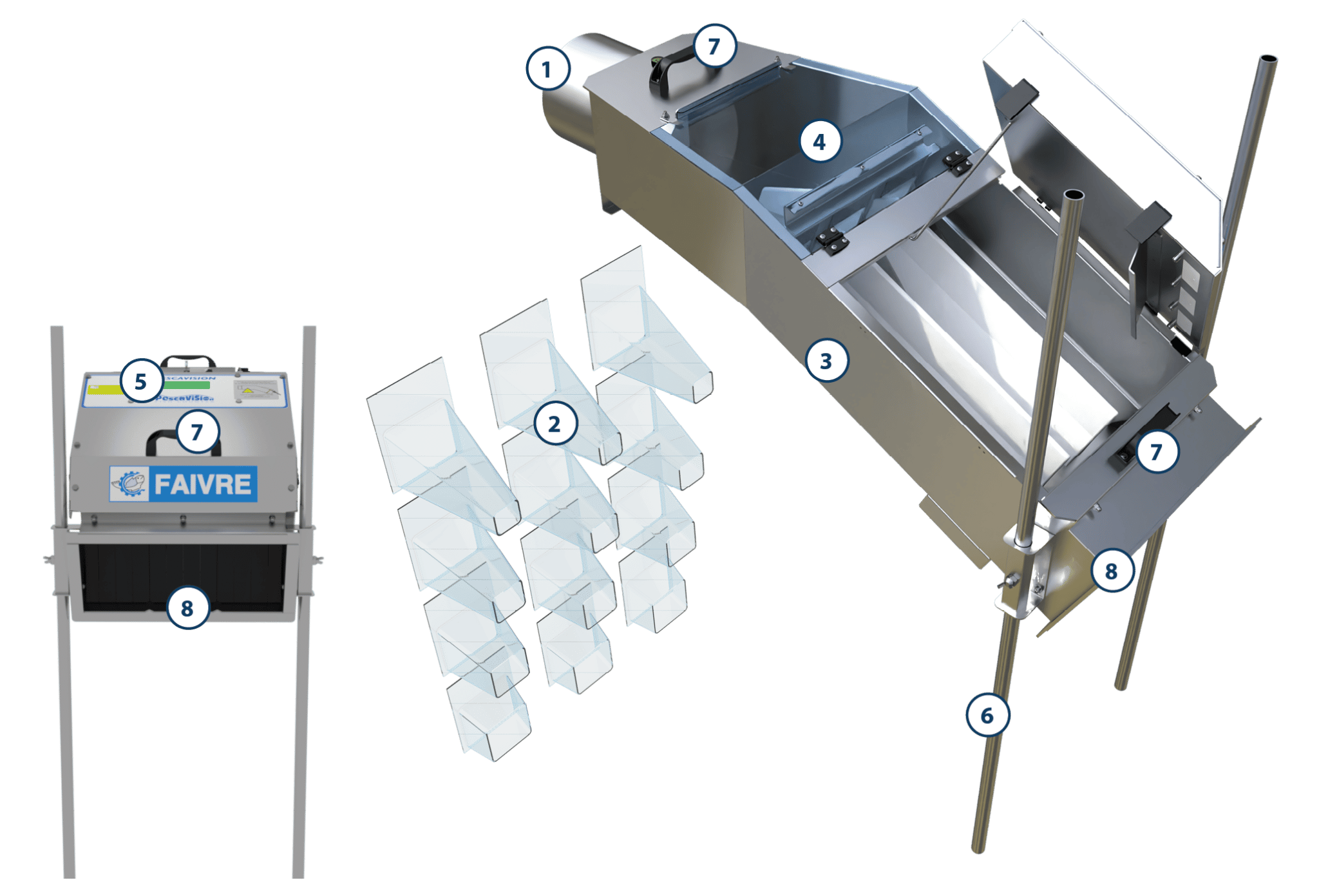

PRODUCT CHARACTERISTICS

  • Fish counter inlet (female Ø 200 mm)
  • Fish dividers (x4 different sizes dividers)
  • Fish counter box in marine grade aluminium
  • Channels access (with cover)
  • LCD display
  • Aluminium movable feet
  • Handles
  • Fish counter outlet

Fish counters – Fish counter Pescavision 40

PRODUCT OPTIONS

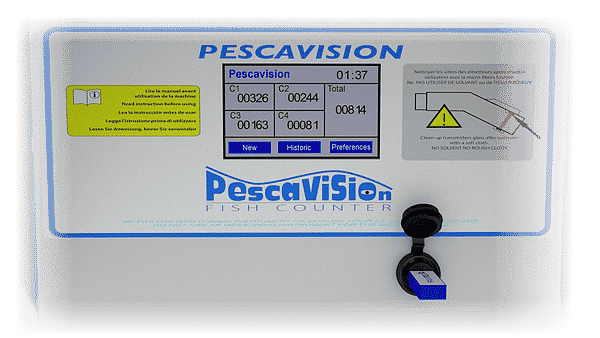

Touchscreen central control unit


A central control unit gathering the information of the fish counters has been integrated on the side of the Heliovision grader.
A counting report in Pdf format can be exported on an USB key and transferred to your computer.
The touch screen will provide the following information:

– Number of fish counted for each counter
– Total number of counted fish
– Last counting record.
– Counting time.

Ref. :
– PESCA4CO tension d’alimentation 1×110-240V 50/60Hz

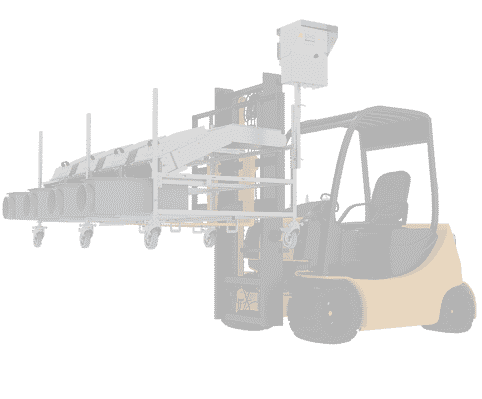

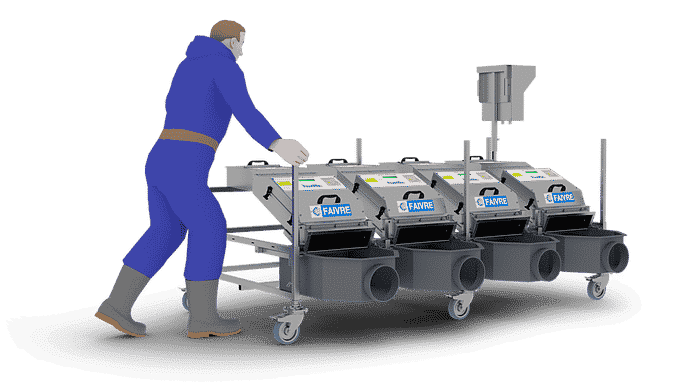

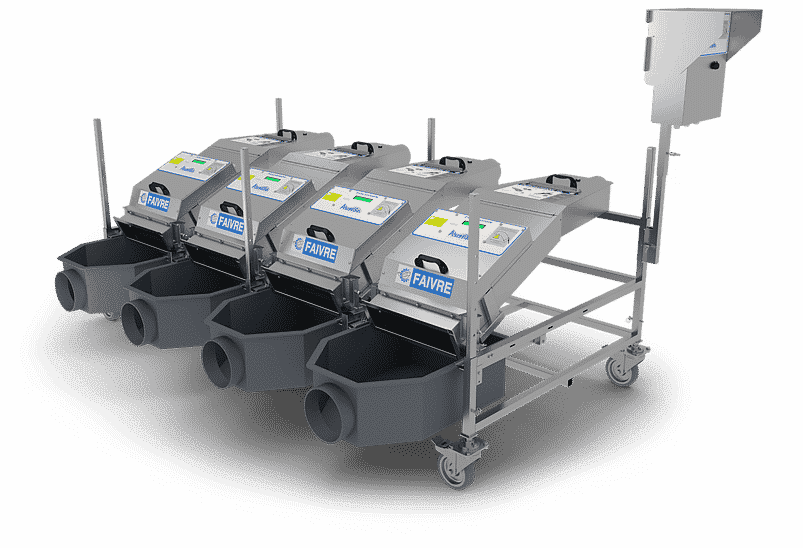

Counting station trolley


A stainless steel trolley on wheels has been developed to gather the counters on a single structure (max. 4 counters), thus facilitating the installation and the removal of the counters in the farm.
The centralization box and the reception trays can be fixed on the trolley to make a complete and autonomous counting station.
A single electrical cable will then be enough to power the station as well as the counters on it.

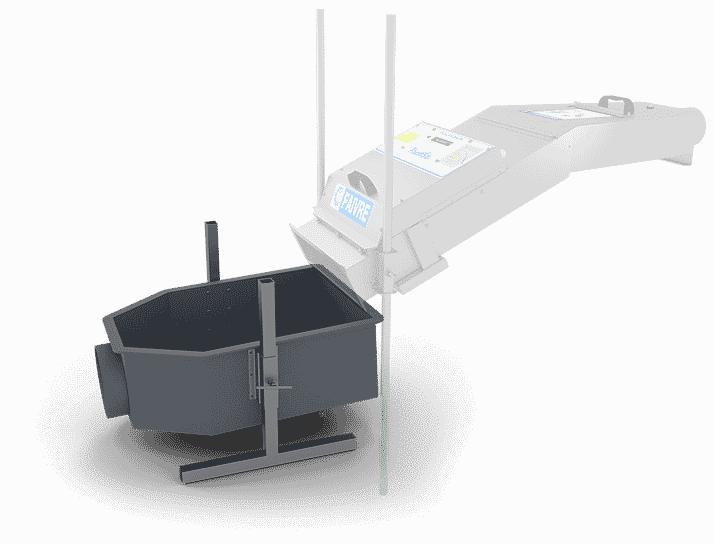

Reception tanks


The reception tanks are designed to place the counter at the grader’s outlet.
It has 2 adjustable height feet, in order to give a slope to your outlet pipe on flat ground.
Practical, it permits to centralize the counters around the grader.

Ref:

– CBRC250 with Ø250mm outlet.

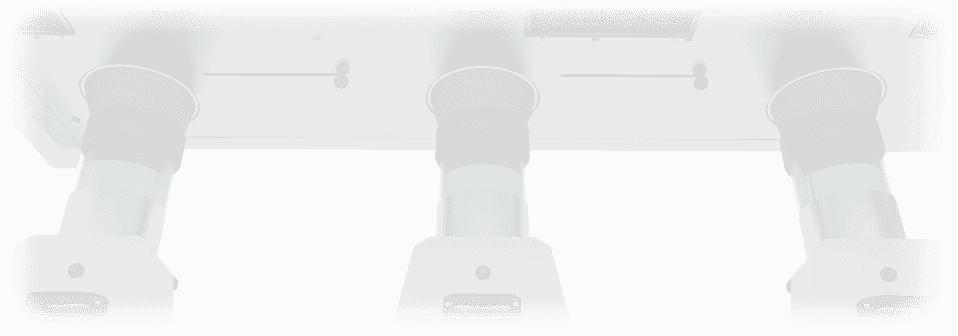

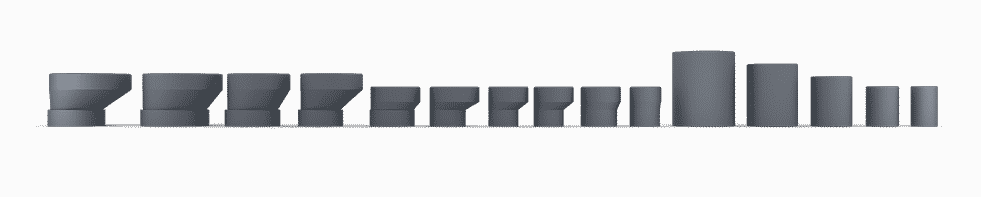

PVC connecting parts


Each fish counter has to be connected to the fish grader with a flexible or rigid PVC hose. Therefore, we have a complete range of specific sleeves to connect the fish counters to each of our fish graders.




Fish counters – Fish counter Pescavision 40
